Descrizione

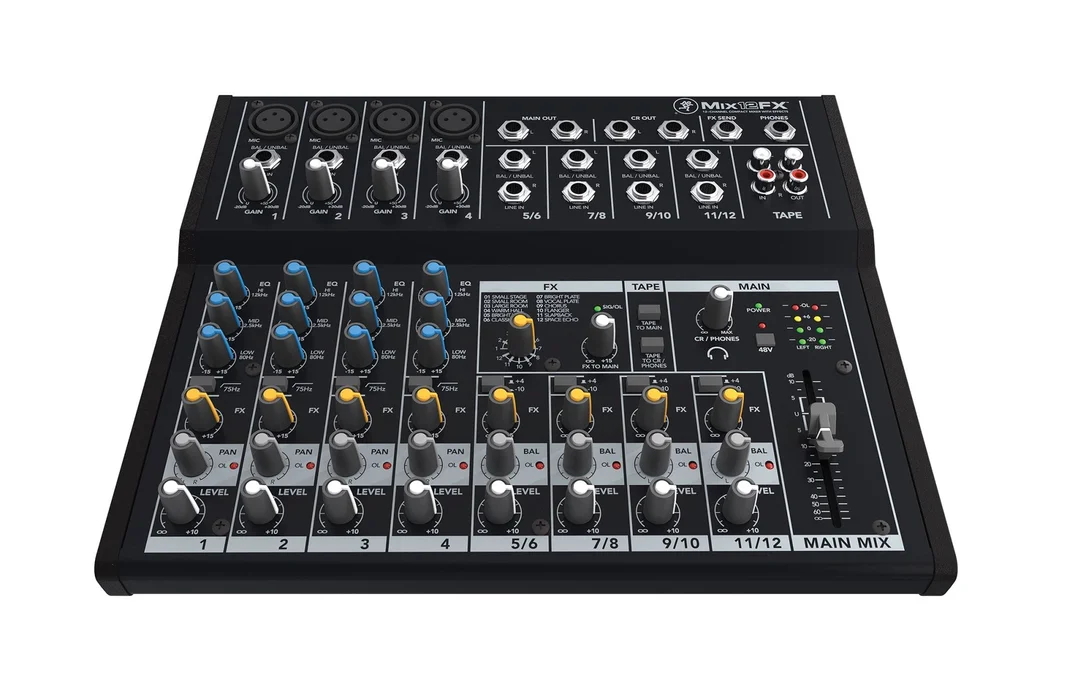

The Mackie Mix12FX is a 12-channel compact mixer with built-in effects that features high quality components, a rugged metal chassis, and is designed for a variety of sound reinforcement applications. The mixer features four mic/line inputs with 48V phantom power and four stereo 1/4″ line inputs, capable of accommodating dynamic and condenser microphones, keyboards, DJ setups, portable music players, and more.
Each of the four mic/line inputs is equipped with XLR and 1/4″ connectors, a dedicated 3-band EQ, high-pass filter at 75 Hz, pan, level control and an LED overload indicator. The four stereo 1/4″ line inputs each feature +4/-10dB operation, level control, balance control and also have an LED overload indicator.
Features
- A high-performance, 12-input desktop mixer with onboard effects
- 4 mic/line input channels includes switchable phantom power
- Each mono channel also features a 3-band EQ and highpass filtering
- 4 stereo channels offer a choice of balanced and unbalance line input for
- FX send on each channel lets you pass signal to the dedicated effects processor
- 12 onboard effects let you add space, depth, and dimension to your mix
- Tape RCA I/O offers additional signal routing options
- Separate Main Mix and Headphones/CR volumes provide added mixing flexibility
- Built to Mackie’s toughness standards for portable use
Specs
| Type | Analog |
|---|---|
| Channels | 12 |
| Inputs – Mic Preamps | 4 x XLR |
| Inputs – Line | 12 x TRS, 1 x stereo RCA |
| Outputs – Main | 2 x TRS |
| Outputs – Other | 1 x stereo RCA (Tape), 2 x TRS (Control Room) |
| Headphones | 1 x 1/4″ |
| Send/Return I/O | 1 x TRS (FX Send) |
| Phantom Power | 4 Channels |
| EQ Bands | 3-band |
| Aux Sends | 1 x Post |
| Effects | Yes |
| Height | 2.1″ |
| Width | 11.7″ |
| Depth | 9.6″ |
| Weight | 4.7 lbs. |
