Descrizione

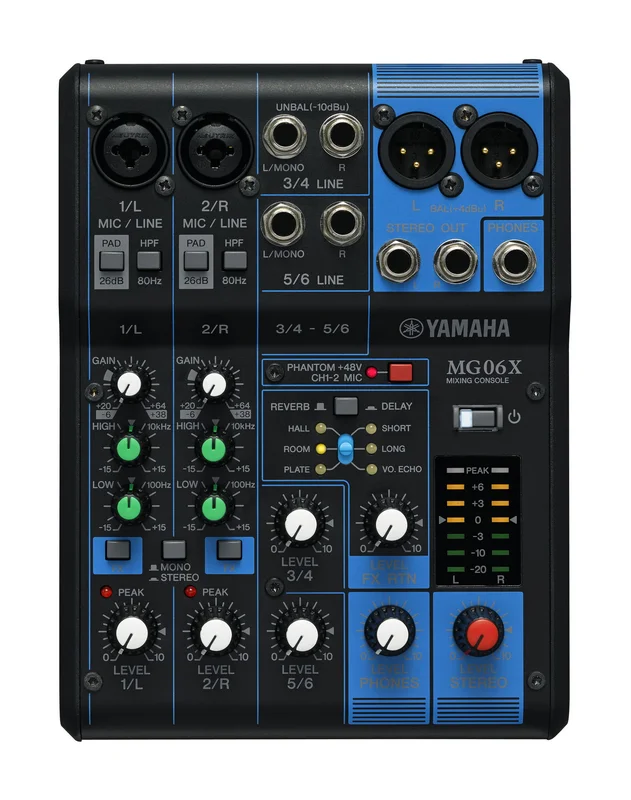

Descrizione Prodotto Descrizione Prodotto Dettagli SpecificheOutline Mixing capabilityOn-board processorsSPX algorithm: 6 programsI/OPhantom power+48 VInput ChannelsMono[MIC/LINE]2Stereo[LINE]2Output ChannelsSTEREO OUT2PHONES1BusStereo: 1Input Channel FunctionPAD26 dB (Mono)HPF80 Hz, 12 dB/oct (Mono)EQ HIGH(Mono) Gain: +15 dB/-15 dB, Frequency: 10 kHz shelvingEQ LOW(Mono) Gain: +15 dB/-15 dB, Frequency: 100 Hz shelvingPEAK LEDLED turns on when post EQ signal reaches 3 dB below clippingLevel Meter2 x 7 -segment LED meter [PEAK, +6, +3, 0, -3, -10, -20 dB]General specifications Total harmonic distortion0.01 % @ +8dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +18dBu (1kHz), GAIN knob: MinFrequency response+0.5 dB/-0.5 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: MinHum & noise levelEquivalent input noise-128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)Residual output noise-102 dBu (STEREO OUT, STEREO LEVEL knob: Min)Crosstalk-88 dBPower requirementsPA-130 (DC12 V/1.0 A, Cable length = 1.8 m), 120 V, 60 Hz, MU18 (DC12 V/1.5 A, Cable length = 1.5 m), 100 V-240 V, 50 Hz/60 Hz or equivalent recommended by YamahaPower consumption12 WDimensionsW149 mm (5.9″)H62 mm (2.4″)D202 mm (7.9″)Net weight0.9 kg (1.98 lbs.)AccessoriesIncluded Accessory: AC Adaptor, Owner’s Manual, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10AOthersOperating Temperature: 0 to +40˚CYAMAHA MG06X MIXER 6 CANALI CON EFFETTI MG-06-X
